PRODUCT DESCRIPTION

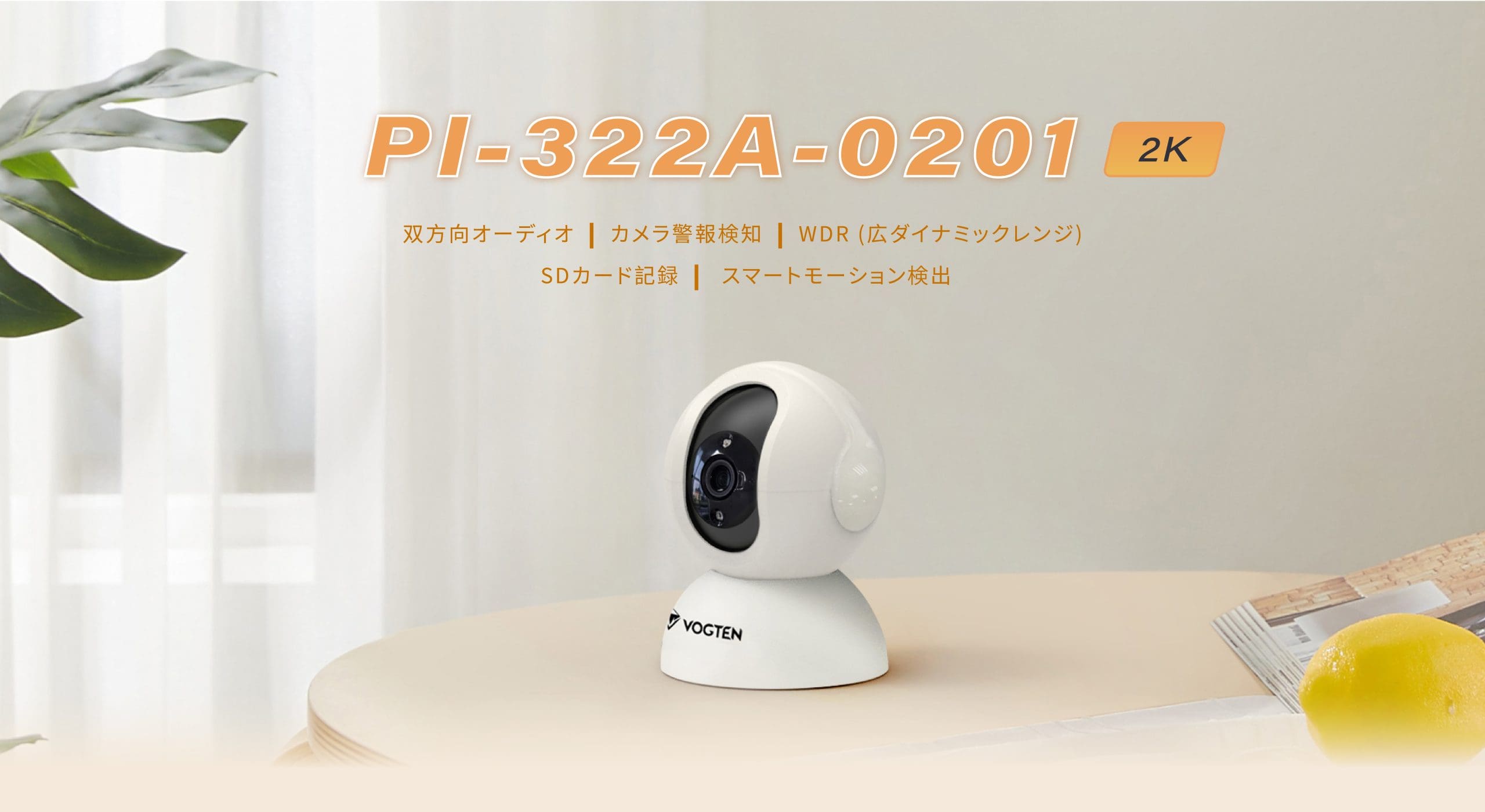

PI-322A-0201 WiFi PT IPcam
- 高解像度イメージング: 2Kの有効ピクセル
- ワイドダイナミックレンジ技術: 高コントラスト環境での画質を向上
- 高効率H.264ビデオ圧縮
- 広視野レンズ: 広範囲の監視範囲をカバー
- オーディオ機能: 優れた音質の双方向オーディオ通信のためのマイクとスピーカーを搭載
- MicroSDカードストレージ: 便利な再生のためのローカル記録ストレージを
SPECIFICATIONS
| Optical | ||
| Effective Pixels | 2K | |
| WDR Technology | DWDR | |
| Lens | ||
| Focal Length | 4.0mm | |
| F Number | F2.2 | |
| Field of View | Diagonal | 109° |
| Horizontal | 89.1° | |
| Vertical | 48.1° | |
| IRIS | Fixed-Iris | |
| IR Cut Filter | IR Cut Filter with Auto Switch | |
| LED | ||
| Type | Built-in IR Illuminators | |
| IR Illuminators | Working Distance | Effective Up to 10m with Full FOV Coverage |
| Wavelength | 850nm | |
| Video | ||
| Compression | H.264 | |
| Encode Performance | 2K | |
| Audio | ||
| Compression | G.711 | |
| Microphone | Yes | |
| Speaker | Yes | |
| Input/Output | ||
| Connectivity | Wi-Fi 802.11n | |
| Connectors | Power | USB TypeC |
| Ethernet | RJ45 | |
| On-Board Storage | MicroSD Card Slot | |
| AI Analytics | ||
| Event Application | Smart Motion Detection | |
| Smart Motion Detection | Yes | |
| General | ||
| Rotation | Pan : 0°~320° / Tilt = 55°~50° | |
| Power | DC 5V / 2A | |
| Weight | 250g | |
DOCUMENT
| PI-322A-0201 WiFi PT IPcam | Download link |
| ENGLISH | Download |
| TIẾNG VIỆT | Download |
| 中文 | Download |
| Instructions for installing the application | Access the link |
